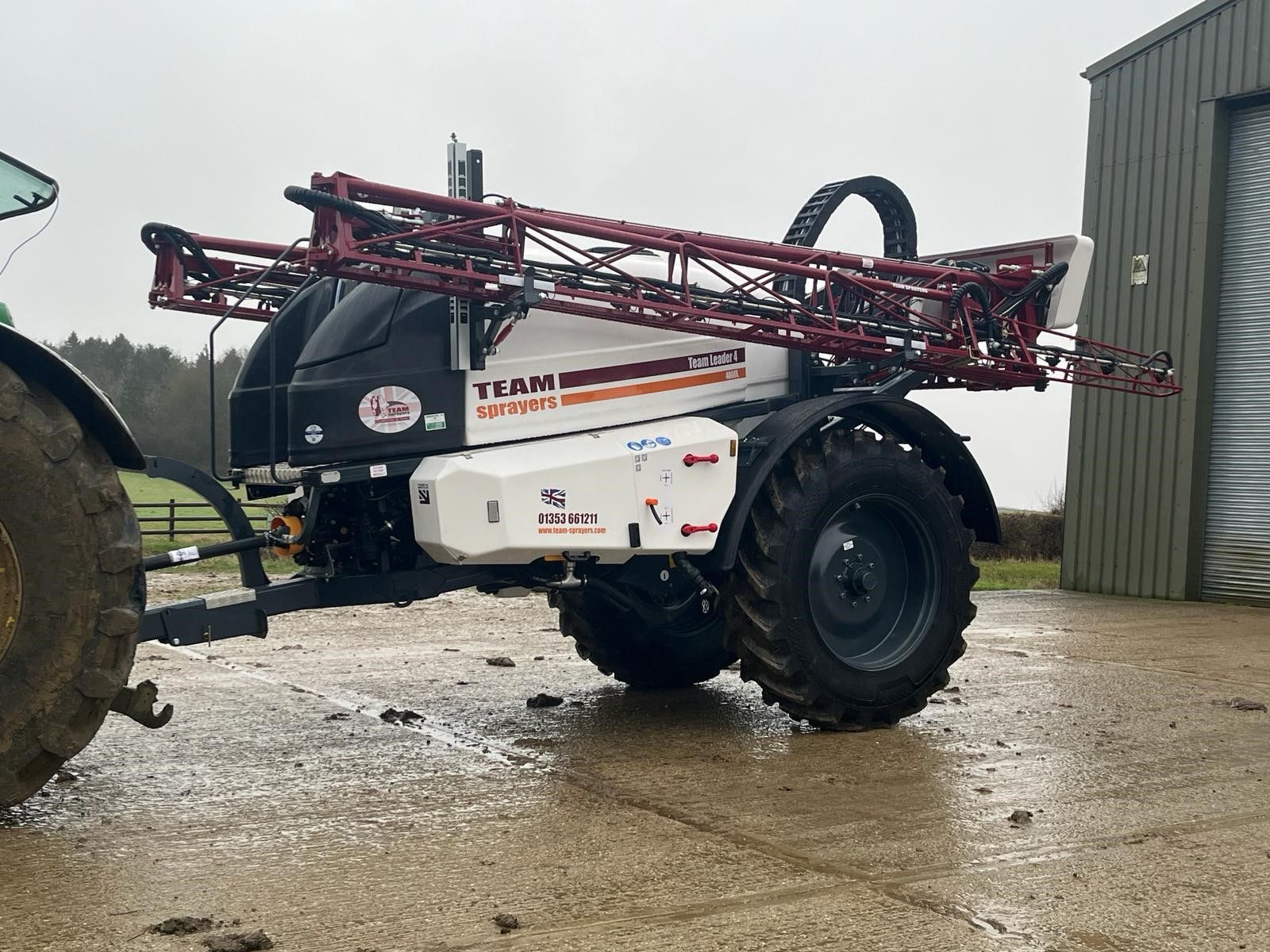

Team Leader 4

Ely based Team’s Leader 4 sprayer is the most popular sprayer in their trailed range. The Leader 4’s design puts an emphasis on stability and has been designed to meet the rigorous demands of any agricultural environment.

The Team Leader 4’s design incorporates a low-folding boom and a profiled tank which ensures a low centre of gravity, thereby maximising machine stability. The Leader 4 has a 25L stainless steel hopper for safe transfer of liquids and powders via a high pressure venturi system to the main tank and a rotary nozzle for cleaning containers. The diaphragm pump is made from high quality Poly’ which withstands any aggressive plant protection chemicals.

All booms are manufactured from steel tubular sections; the three dimensional structure guarantees strength and durability. All nozzles and spray lines are secured above the base of the boom for protection against accidental damage whilst the Pantograph boom lift system, which allows height adjustment from 500-2500mm ensures excellent stability and performance.

This model is available with boom widths from 21m to 36m and tank sizes of 3000, 4000 and 5000L as well as a Muller Track Guide 3 control system as standard.

Other main features of the Leader 4 include:

• GPS field mapping and 12 section boom control
• Air ride axle suspension with load sensing valve
• Constant Boom re-circulation (air stop nozzle assemblies)
• Steering/tracking axle system
• Full electro-hydraulic control system
• HD PTO driven air compressor
• Work station with simple control valve layout
• Optional automatic boom height and contour control

Team also offer a front mounted tank range to increase spray capacity as well as productivity. The front mounted unit is quick and easy to mount and demount from the tractor and is fitted with quick release couplings on all liquid and hydraulic hoses. In-cab controls allow fast transfer of liquid to the rear tank during the spraying operation.
