Altek Smart-C Spray 124

ALTEK-LECHLER Stand: 906

This system has been developed in conjunction with the Danish sprayer controller manufacturer “Lykketronic”.  This new system allows operators to use all the very latest efficient air-inclusion low drift nozzles in their plant protection applications. In addition, “True” turn compensation and individual nozzle control on up to 4 separate spray lines is possible.

This new “SMART” alternative to PWM systems has many advanced features that ensure the most efficient and environmentally friendly spray applications are possible.

The Smart-C-Spray system features include:

  • Up to 4 spray lines capable of operating individually or in combination with others selected from the terminal to allow for multiple nozzle selection and rates from the cab

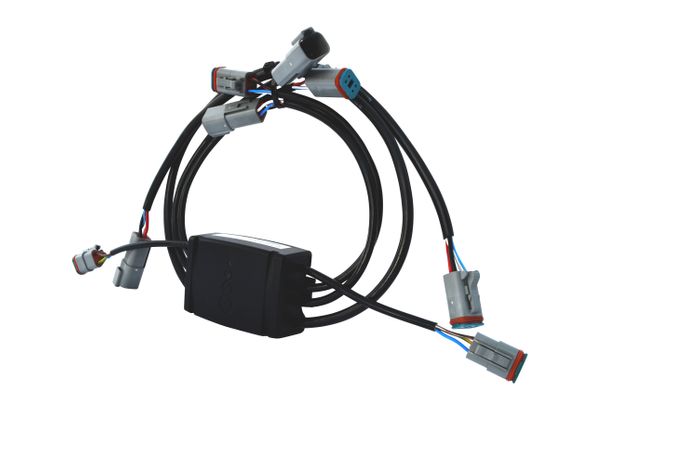

  • Auto Addressing – Can nodes mounted directly to the spray line

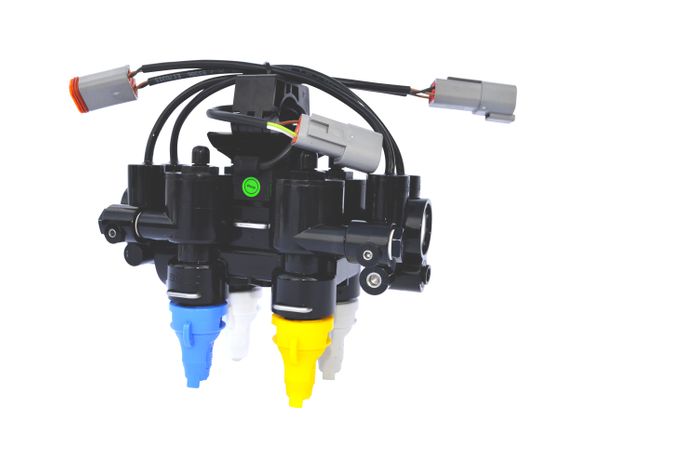

  • Individual nozzle control for all nozzles and lines.  These can also be grouped to allow for manual section control for the operator.
  • Auto Nozzle Select (ANS) feature will allow the spray lines to change nozzle size/combinations automatically to compensate for speed increase/application increase
  • Variable Rate Application - in conjunction with SHP maps imported to sprayer terminal (Twin & Quad Systems)
  • Fast Regulation – altek SBR 500 ensures fast response to pressure & flow changes.
  • Nozzle-Spy Flow Monitoring of each nozzle position providing real-time feed back to the sprayer terminal. (Twin & Quad Systems)
  • Turn Compensation – providing variable rate along the spray line depending on speed and direction of each nozzle position. (Twin & Quad Systems)
  • ISO-BRIDGE connection to the Controller. This allows the operator to choose from a selection of rate controller to use with the smart-c-spray system.
  • Simple Diagnostics ensure any errors can be easily identified.
  • Smart-C-Spray 124 can be retrofitted to most makes of sprayer
  • Compatible with Lykketronic Spray rate Controller
